EGG BOX


Homemade name.


Cartesian equation: .
Translation surface.

The egg box is the surface obtained by translating a sinusoid along another isometric sinusoid, perpendicularly.
This surface can be interesting to introduce the notions of extrema and saddle points.

Remark: weirdly, if the + is replaced by a  is the above equation, the surface obtained is also an egg box; indeed: .

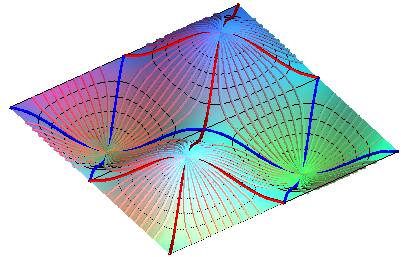

Projections of contour lines: sin x/b sin y/b = cte.

Projections of slope lines:
cos x/b = cte cos y/b.

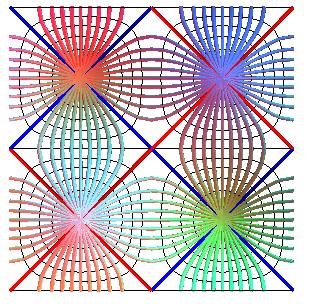

réseau des courbes de niveau
